Öhlins Road & Track Coilover System for G8X BMW M3 and M4

Öhlins Road & Track Coilover System for G8X BMW M3 and M4

Over the course of five decades, Öhlins have developed technology through working with top-notch suspension solutions and high-level racing. This technology is now accessible to street cars worldwide. From the very beginning, the primary focus has been providing optimal road handling while maintaining comfort during everyday driving.

Their new road and track kit for the BMW M3 (2020-) boasts a lightweight design, with most of its components crafted from aluminum. It’s a perfect fit for both RWD and xDrive. Additionally, the shocks have passed rigorous corrosion testing in line with ISO 9227 standards. A two-year limited warranty ensures quality protection for all of their products globally.

The Öhlins’ Road & Track team extensively tested a variety of springs to strike the right balance between road and track usability. These springs have withstood all kinds of conditions — both on public roads and race tracks. Hence, it is highly recommended to use the included spring rate.

General Features

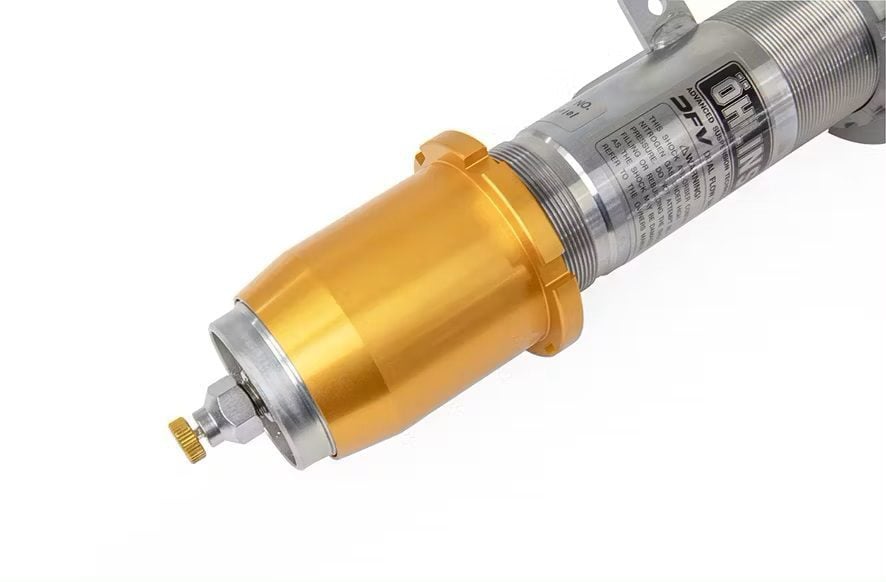

• DFV (dual flow valve)
• Rebuildable
• Corrosion salt spray tested (ISO 9227)
• 2 year limited warranty
• Springs included
• Temperature compensated
• Installation manual
• Product manual

Front Features

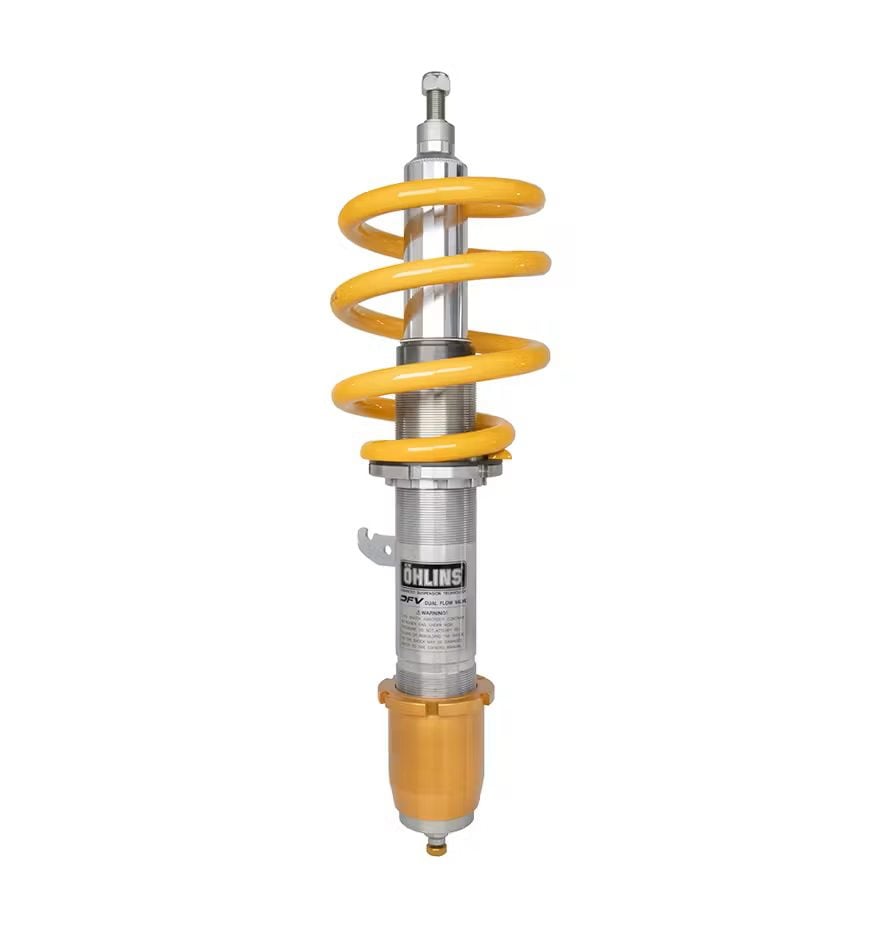

• McPherson strut
• Single bleed adjuster
• Spring preload adjuster
• Height adjustable
• Coil springs
• Use with original top mounts

Rear Features

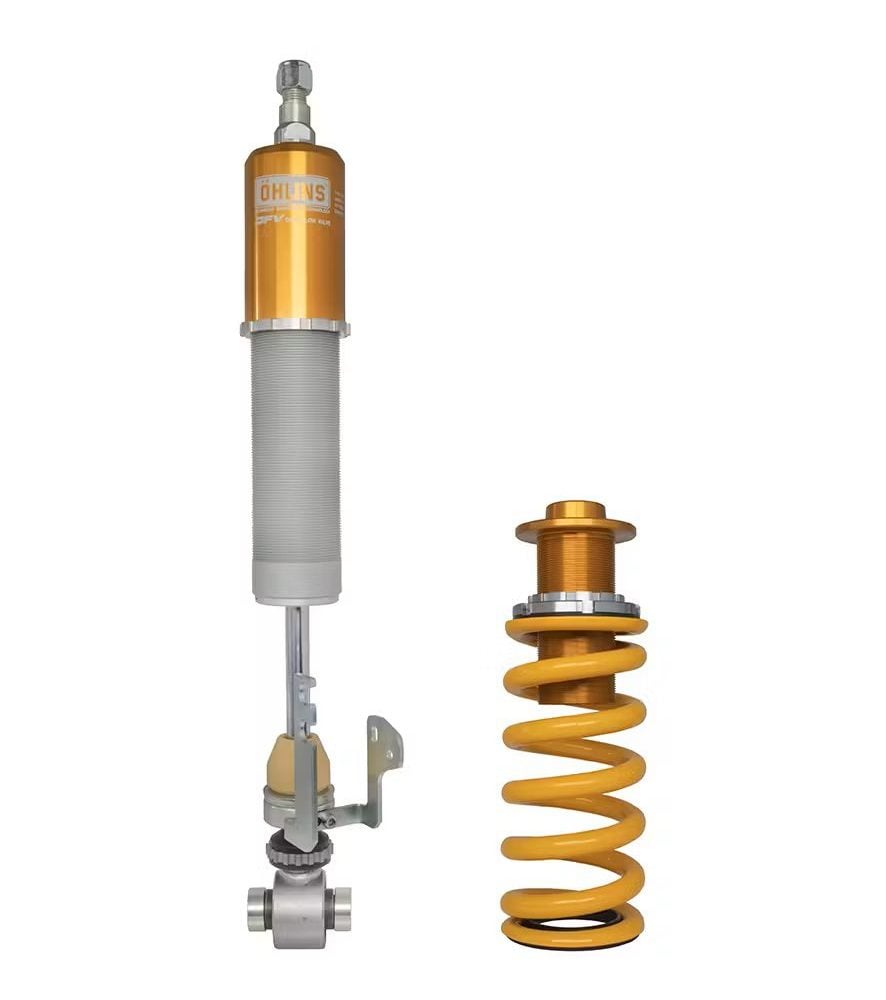

• Conventional shock absorber
• Single bleed adjuster
• Separate spring preload adjuster
• Coil springs
• Use with original top mounts

What’s in the Box

• Left shock absorbers (front, rear)
• Right shock absorbers (front, rear)
• Dust boots (2)
• Plastic spring spacers (2)
• Springs (2)
• Top pin spacers (2)
• Washers (2)
• M12 lock nuts (2)
• Anti roll-bar spacers (2)
• M6 nuts (2)
• M6 screws (2)
• Length adjusters (2)
• C-spanner (1)
• C-spanner (1)
• Öhlins sticker kit (1)
• Öhlins owners manual (1)

Applications

• 2020+ BMW M3: G80
• 2020+ BMW M4: G82, G83

Notes

• Only fits RWD vehicles, xDrive version here
• For cars that are OE equipped with electronic adjustable suspension, the Öhlins cancellation kit should also be used – this kit is sold separately

About Öhlins

For more than 45 years, Öhlins Racing has stood as a pivotal component in the motorsport, motorcycle, and automotive industries.

From their inception, their main focus has been on providing superior quality products, service, and support, from the MotoGP circuit to national and regional racing functions, extending their services to above 50 countries.

In addition to catering to the aftermarket, Öhlins Racing also supplies high-end suspension technology to original equipment manufacturer (OEM) partners and teams, always aiming to go beyond the expectations of their global customer base.
